Compact & Powerful

TerraCube S1

Autonomous Multi-Sensor Module

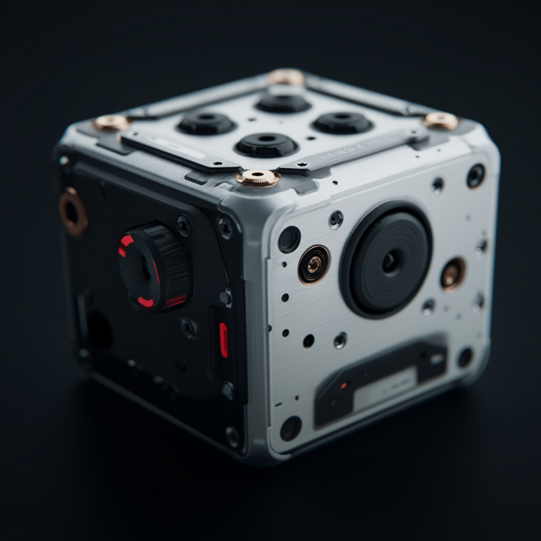

ExoTerra Instruments' flagship sensor block: a 90-gram, 60 mm aluminium-titanium cube that packs laboratory-grade measurement capabilities into a field-ready form factor. Designed for planetary landers, UAVs, subsea crawlers and polar research stations.

Key Capabilities

Function	Integrated Technology	Performance
Multi-spectral imaging	ƒ/1.8 12 MP optical imager + dual-band SWIR sensor	4 K stills / 2 K video @ 60 fps
Environmental sensing	6-DOF IMU, barometric altimeter, thermo-hygrometer, radiation dosimeter	±0.02 ° attitude, 0.1 hPa, –80 °C to +150 °C
On-board AI edge compute	8-TOPS embedded TPU	Real-time anomaly detection & feature tagging
Adaptive power	Hybrid MPPT + super-cap buffer	0.9 W nominal, <80 mW sleep
Hermetic chassis	IP69K / MIL-STD-810H / NASA S-Par spec	40 g shock, 20 krad total dose

Why TerraCube S1?

Modular by Design

Stackable GigE + SpaceWire backplanes let you build distributed arrays without rewiring buses.

Self-Reliant

Sensor health checks, auto-calibration routines, and radiation-tolerant firmware mean zero-maintenance deployments that can run for years on unattended power.

Edge Intelligence

Integrated TPU classifies spectra, terrain texture, or chemical signatures locally, slashing both latency and downlink budgets.

Rapid Integration

Designed for Caelum Space's Sentinel Autonomy System but compatible with ROS 2, DDS and PX4 bindings plus a C++/Rust SDK streamline payload scripting, while twin M12 rugged connectors ensure plug-and-play power/data.

Technical Snapshot

Physical

Dimensions:60 × 60 × 60 mm

Mass:90 g

Interfaces

Data:GigE, SpaceWire

Additional:CAN-FD, UART, PPS

Environmental

Temperature:–80 °C to +150 °C

Pressure:10⁻⁶ mbar to 100 bar

Power

Nominal:0.9 W

Sleep:<80 mW

Reliability

MTBF:> 120,000 h

Lifecycle:≥ 8 years

Compliance

Standards:NASA/ESA outgassing

Regulatory:RoHS 3, CE, FCC

Typical Missions

Volcanology & Seismology

Deploy sensor cubes around calderas for synchronized gas analysis and ground tremor triangulation.

Lunar Night Survival Kits

Operate optics, IMU and dosimetry at –170 °C with autonomous hibernation cycles.

Deep-Sea Hydrothermal Surveys

Mount on AUVs to capture high-dynamic-range imagery and temperature/chemical gradients at 6,000 m depth.

Martian Rover Upgrades

Add real-time hazard recognition and dust-storm barometry without increasing harness complexity.

Equip Your Next Mission

Equip your next mission with TerraCube S1 and trust ExoTerra Instruments to turn every harsh horizon into a data-rich frontier.
